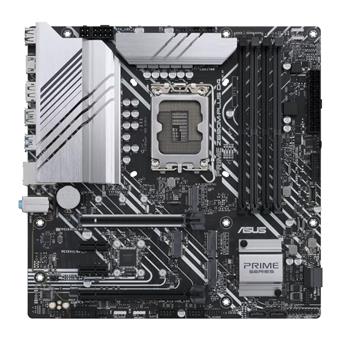

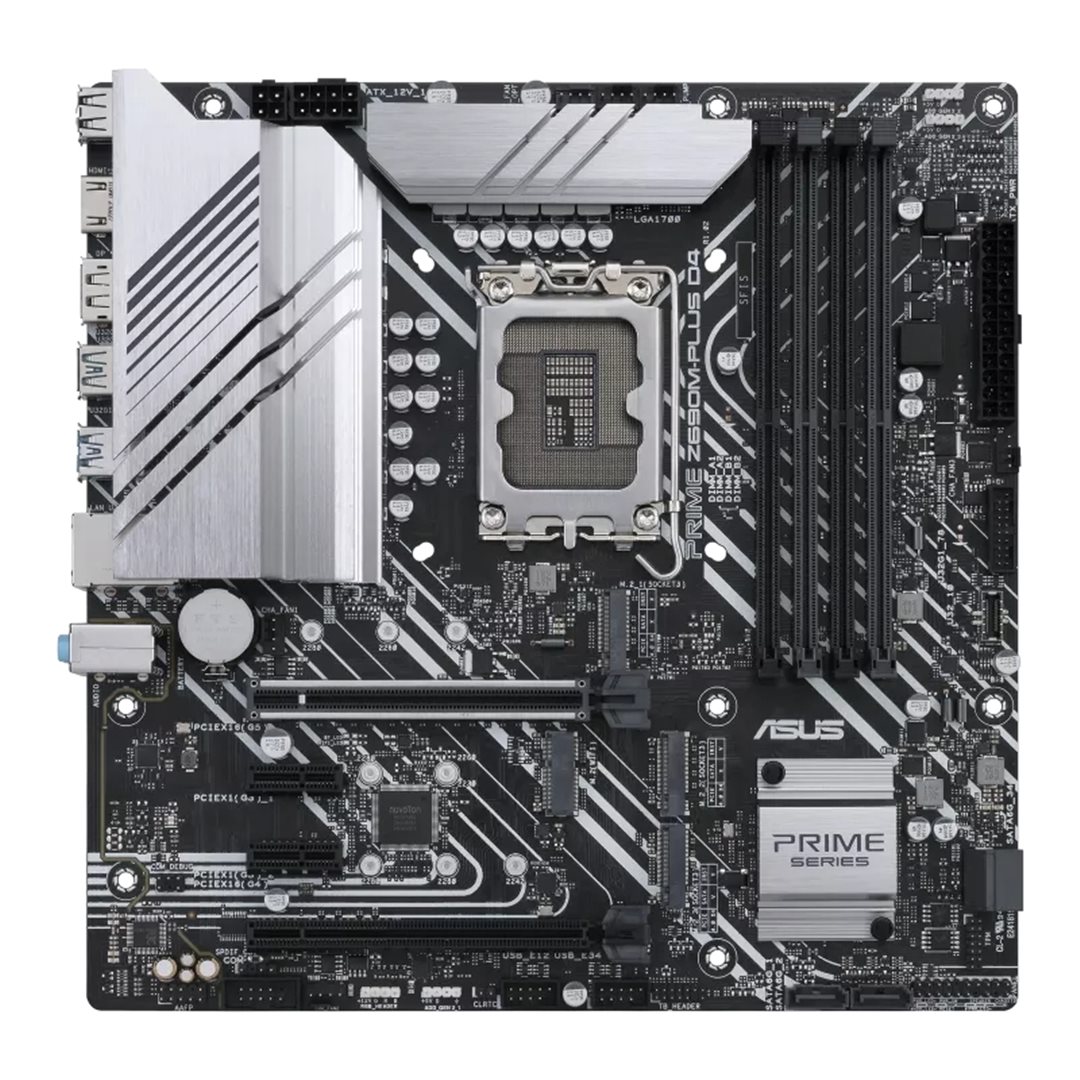

ASUS PRIME Z690M-PLUS D4/ LGA 1700/ mATX

Chipset: Z690

Rozměrový formát: microATX
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: Intel Socket LGA1700

Pozice na paměti: 4 x DIMM
Podpora pro paměti:

• DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

Max.velikost operační paměti: 128 GB
Podpora pro paměti typu:

• DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• OptiMem II

Grafická karta:

• 1 x DisplayPort
• 1 x HDMI Port

Zvuková karta:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Síťová karta:

• 1 x Intel 1Gb Ethernet

Rozšiřující sloty:
Intel 12th Gen Processors:

• 1 x PCIe 5.0/4.0/3.0 x16 slot

Intel Z690 Chipset:

• 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots

RAID řadič: NVMe RAID 0/1/5, SATA RAID 0/1/5/10

SATA:

• 4 x SATA 6Gb/s ports

M.2:

• 3 x M.2 slots

USB:

• zadní USB porty ( celkem 8 )
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• přední USB porty ( celkem 7 )
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Interní porty:

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
• 1 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x M.2 slot (Key E)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt header

Externí porty:

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1x HDMI port
• 1 x Intel 1Gb Ethernet port
• 3 x Audio jacks

BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI

Stránka výrobce: https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z690M-PLUS-D4/techspec/
