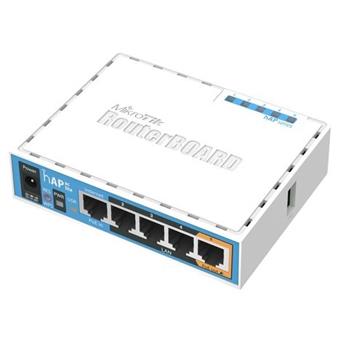

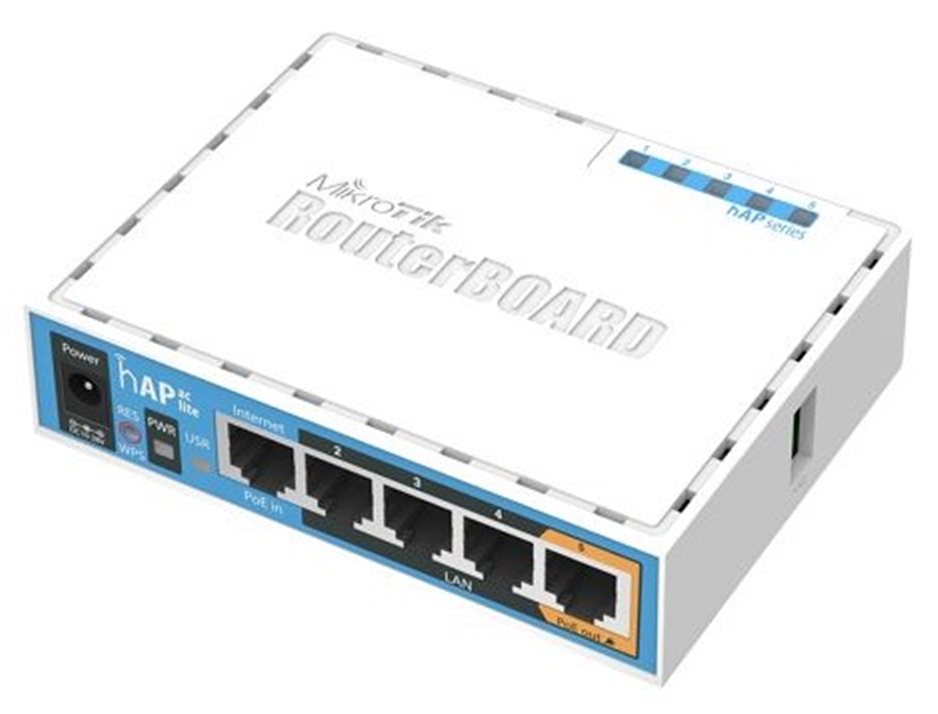

Mikrotik RB952Ui-5ac2nD, 650MHz, hAP, 5xLAN

hAP ac lite

PRESENTATION VIDEO

OVERVIEW

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.
Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.
We have two versions available - RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range.

TECHNICAL SPECS

Product code

• RB952Ui-5ac2nD

CPU nominal frequency

• 650 MHz

CPU core count

• 1

Size of RAM

• 64 MB

10/100 Ethernet ports

• 5

Wireless chip model

• QCA-9887-0-68BMQFN-TR-02-0

Wireless standards

• 802.11a/n/ac

Secondary wireless chip model

• QCA9531

Number of USB ports

• 1

Power Jack

• 1

PoE in

• Yes

PoE out

• Yes

Supported input voltage

• 10 V - 30 V

Dimensions

• 113 x 89 x 28mm

Operating System

• RouterOS

Operating temperature range

• -30 + 70 C °

License level

• 4

Antenna gain DBI

• 2

CPU

• QCA9531

Max Power consumption

• 8W

USB slot type

• USB type A

Number of chains

• 1

Storage type

• FLASH

Storage size

• 16 MB
